Precision RF Cable Assemblies Up to 65 GHz

Achieve Peak Performance with Bracke’s Precision RF Cable Assemblies

Engineered for demanding environments, Bracke’s Precision RF cable assemblies deliver outstanding performance across 18 GHz to 65 GHz.

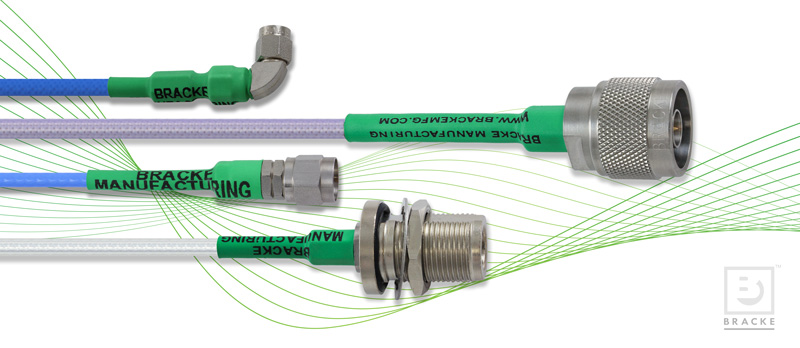

Choose from a broad range of connector and coax combinations—including 1.85mm, 2.4mm, 2.92mm, N-Type, SMA, and TNC—in straight, right-angle, and bulkhead styles. Available in cable diameters from .095″ to .195″, our assemblies offer the versatility to meet your exact specifications.

High-Frequency Precision & Ultra Precision RF Cable Assemblies – Up to 65 GHz
Our extensive line of RF cable assemblies supports frequencies from 18 GHz to 65 GHz, featuring precision and ultra precision options. Configurations include 1.85mm, 2.4mm, 2.92mm, N-Type, SMA, and TNC connectors in straight, right-angle, and bulkhead variants. Available in multiple cable diameters (.095″, .098″, .150″, .160″, .170″, and .195″), these assemblies are built for superior signal integrity, low loss, and mechanical reliability—ideal for test labs, communications, and high-frequency applications.

1.85mm Ultra Precision RF Cable Assemblies – Up to 65 GHz

These high-frequency 1.85mm male RF cable assemblies offer precision performance with frequency support from 40 GHz up to 65 GHz. Built with .098″ diameter cable for enhanced stability, these assemblies include configurations with 2.4mm and 2.92mm male connectors, making them ideal for critical testing, measurements, and communication applications where signal integrity is paramount.

2.4mm High-Frequency Ultra Precision RF Cable Assemblies – Up to 50 GHz

Designed for superior performance in high-frequency environments, these ultra-precision cable assemblies support up to 50 GHz. Featuring 2.4mm, 2.92mm, and 1.85mm male connectors, they ensure excellent signal transmission with low loss and tight phase stability. Available in .095″ and .098″ diameters, these cables are ideal for advanced RF testing and instrumentation setups.

2.92mm Ultra Precision RF Cable Assemblies – Up to 40 GHz

Engineered for high-frequency applications up to 40 GHz, these ultra-precision cable assemblies feature various male connector configurations, including 1.85mm, 2.4mm and 2.92mm options. Available in multiple diameters (.095″, .098″ and .160″), our low loss cables offer exceptional signal integrity and reliable performance for demanding testing and measurement environments.

N-Type Precision & Ultra Precision RF Cable Assemblies – Up to 18 GHz

These 18 GHz cable assemblies feature a variety of N-Type and SMA connector configurations, including male, female, and bulkhead options. Designed for reliable performance in RF and microwave systems, they are available in .150″, .170″, and .195″ cable diameters to suit different mechanical and electrical needs. With precision and ultra precision options, these assemblies deliver low-loss, stable signal transmission for high-frequency testing and communication applications.

SMA Precision RF Cable Assemblies – 18 GHz to 26.5 GHz

Our precision RF cable assemblies deliver exceptional performance for demanding applications up to 26.5 GHz. Configurations include N-Type, SMA, and TNC connectors in straight and right-angle options, with male and female or bulkhead variants. Available in cable diameters of .150″, .160″, .170″, and .195″, these assemblies ensure reliable signal transmission with low loss, making them ideal for testing, measurements, and communication systems.

TNC Precision Cable Assemblies – Up to 18 GHz

Engineered for reliable performance up to 18 GHz, these precision cable assemblies feature TNC male to SMA male and TNC male to TNC male configurations. Available in .150″ and .170″ diameters, they offer robust construction and stable electrical performance for RF and microwave test applications.
